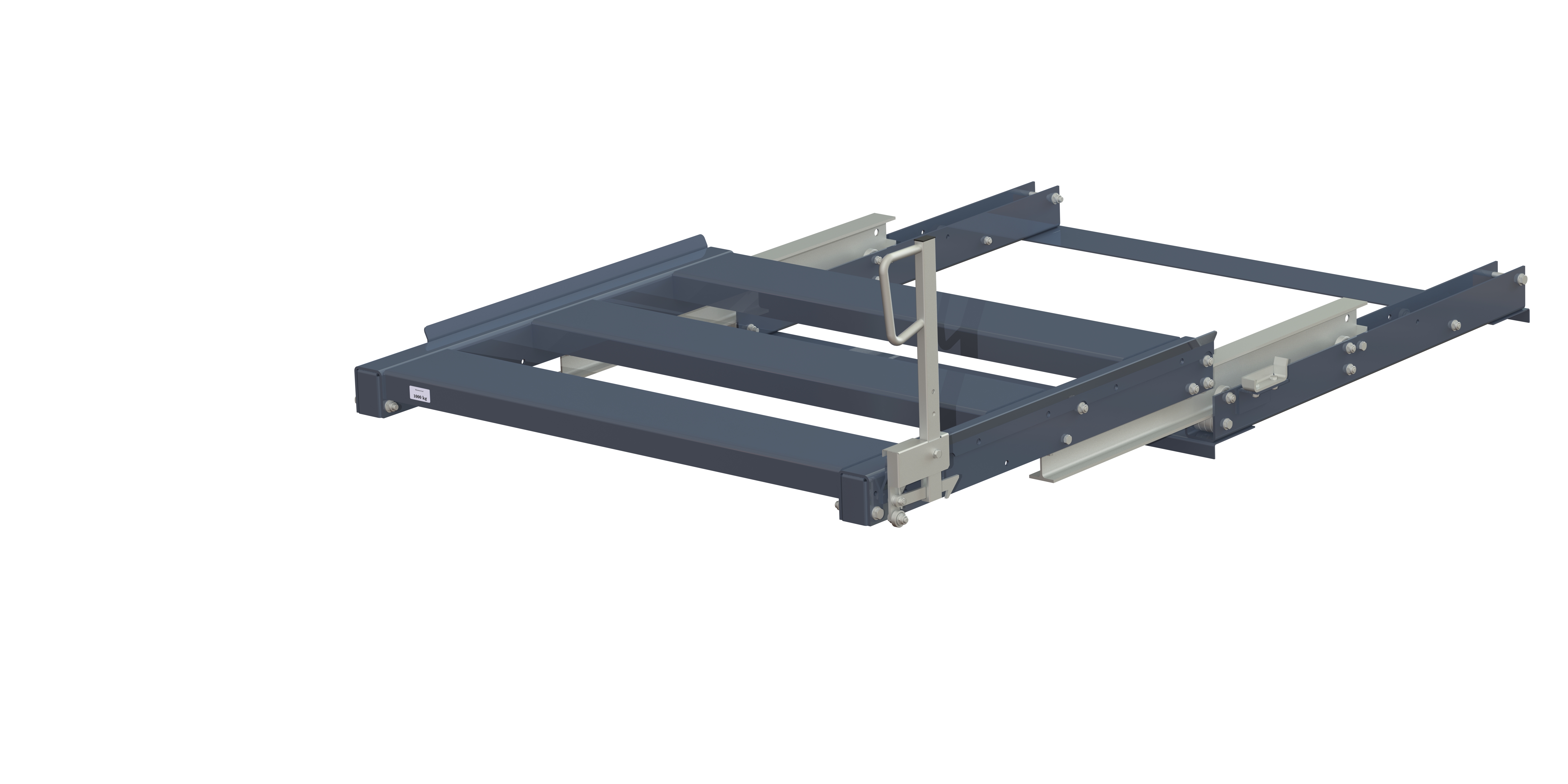

Pull-out unit for pallet rack with 100% extension ,1000 kg load capacity, Front-loaded, Long-side handled FIN-pallet, Easy Action™ handle. H=500 mm
Beam-mounted pull-out unit for storing FIN-pallet. 100% pull-out extension and 1000 kg load capacity. Loading area is W=1230 mm D= 1000 mm. Load from rear or front side and pick from front side. Short-side handled. The unit pictured is equipped with optional anti-slip tape, rear pallet stop.
Beskrivning
Loading capacity given is for an evenly distributed load. Loading from front side. 100% extension gives full access to the whole loading surface – important when handling goods with
cranes or to get at heavier items right at the back of the unit.
This unit is equipped with bracket and locking mechanism for Easy Action handle™, which uses the lever eff ect to greatly reduce
the eff ort required to move heavily loaded units. The total height of the unit togehter with the handle height is described at the table on the product data sheet
Solid construction means that the pull-out unit will take very high loads. Double I-beams and as many as
40 ball bearings ensure smooth travel on the sliders, low operating eff ort and very long life. Delivered fully assembled and tested.
Mounting kit 24-M10-140 for fitting to pallet racking is included, pLease give the height of your beams when ordering!
Rear beam must be securely bolted to the pallet racking! Pallet racking must be securely bolted to the floor!
Pallet rack support beam must have an approved weight capacity, see table on the product data sheet!
